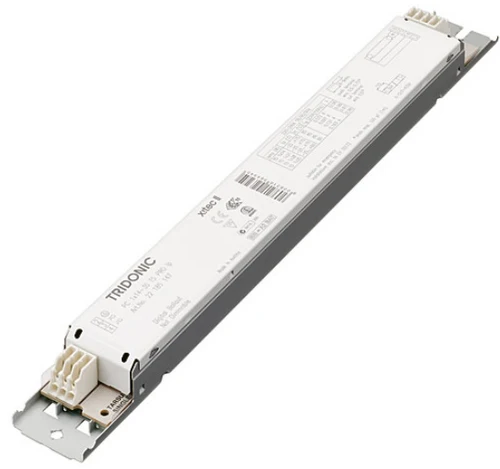

Tridonic PC 2×14-35 T5 Pro LP 22185148

Description

• Electronic fixed‑output ballast for T5 lamps (T16), 2‑lamp configuration.
• Highest CELMA Energy Efficiency Index: A2 BAT (high‑efficiency ballast classification).
• Nominal lifetime: up to 100,000 hours at ta = 50 °C with ≤0.1% failure rate per 1,000 h.
• Advanced SMART‑Heating ensures ≥50,000 starts without lamp replacement.
• Constant luminous flux regardless of mains voltage fluctuations.
• Intelligent Voltage Guard provides:
  • Overvoltage indication
  • Undervoltage shutdown
• Automatic restart after lamp replacement.
• Safety shutdown for defective lamps and end‑of‑life protection (EOL2).
• IDC (Insulation Displacement Connection) terminals for fast wiring.
• Suitable for emergency lighting systems per EN 50172.
• For luminaires of protection class I and II.
• IP20 protection rating.

⚙️ Technical Data

• Mains voltage: 220–240 V
• AC operating range: 198–264 V
• DC operating range: 176–280 V (lamp start ≥198 V DC)
• Mains frequency: 0 / 50 / 60 Hz
• Overvoltage protection: 320 V AC for 1 hour
• Defined warm start: ≤1.5 s
• Operating frequency: ≥39.5 kHz
• Ambient temperature (ta): −25 °C to up to 80 °C (variant‑dependent)
• Standards compliance: EN 55015, EN 61347‑2‑4, EN 61347‑2‑3, EN 60929, EN 61000‑3‑2, EN 61547, IEC 68‑2‑64, IEC 68‑2‑29, IEC 68‑2‑30.

📏 Mechanical Data

• Dimensions: 360 × 30 × 21 mm
• Fixing hole spacing: 350 mm
• Side fixing feature: Ø4.1 mm
• Weight: 0.243 kg

🔌 Lamp Compatibility (2‑lamp operation)

Supports the following T5 lamp wattages:

📦 Ordering Information

• Type: PC 2×14–35 T5 Pro LP
• Article number: 22185148
