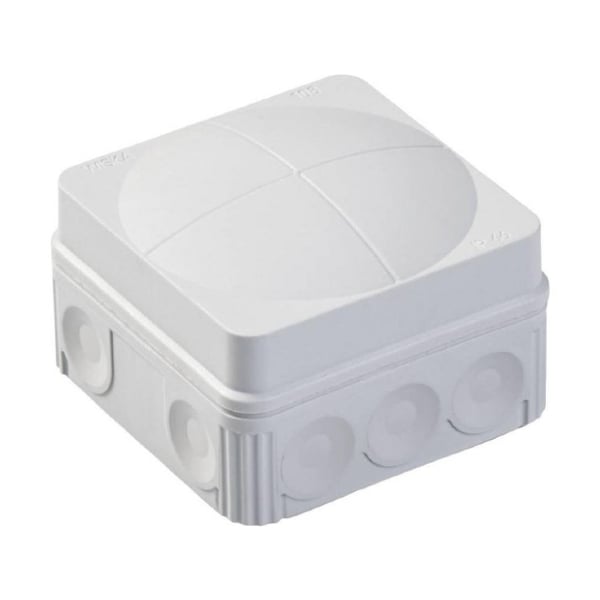

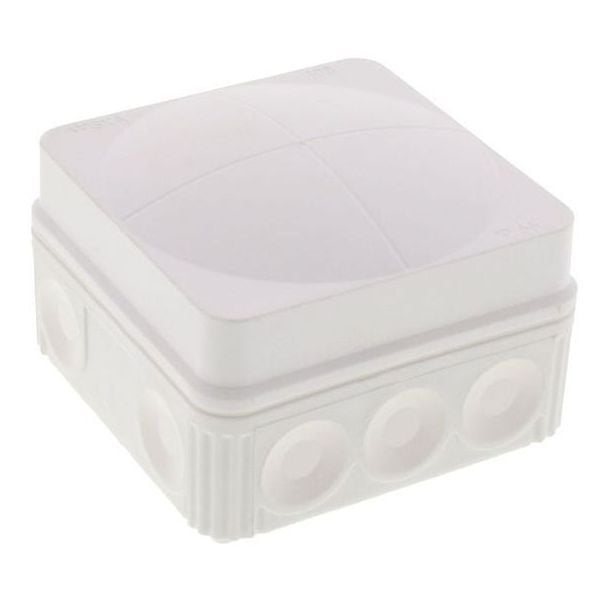

Wiska Combi 108/5 IP66 Junction Box

Description

Wiska Combi 108/5 IP66 Junction Box

Overview:

• 10% more room inside, thanks to the bellied cover
• Solid thermoplastic housing made from 2 different moulded materials
• 12 elastic self-sealing membranes for cable entry without mechanical devices (10 on sides, 2 in base)
• Quick-release lid screws made of plastic will not rust and stay securely in place
• Weather proof, resistant to ultraviolet, shatter proof and impact resistant
• Flame retardant and halogen free
• Mounting clip for Snap-on fixing or via 2 internal openings outside of the sealing area
• EN60529, EN60695-2-11

Specification:

• Material: Polypropylene
• Material sealing gasket: TPE
• Temp. range min: -30 °C
• Temp. range max: 100 °C
• Temperatures during install: -5 °C – 60 °C
• Protection class: IP66
• Glow wire test: 750 °C
• Voltage: 400 V
• Rated current / A (Terminal): 24 A
• Rated cross section: 2,5 mm²
• Terminals/poles: 5 x 2,5 mm²
• Fixing: 2 internal openings
• Ø cable diameter min: 3 mm
• Ø cable diameter max: 14 mm
• External dimensions LxWxH: 76 x 76 x 51mm
• Product Color: Black, White, Grey
• WISKA-Order no: 10061998
• Type: COMBI 108/5 BK
• Packing unit: 10
• ETIM-Classification EC002600

Equipment:
– 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom
– inclusive terminal block 5-poles, 2,5mm²

Fixing:
By two internal openings outside of the sealing area

Press here to view the datasheet for additional information.

Click here to view other weather proof enclosures alongside the Wiska Combi 108/5.
