Wiska TKE/P 50

Description

Overview:

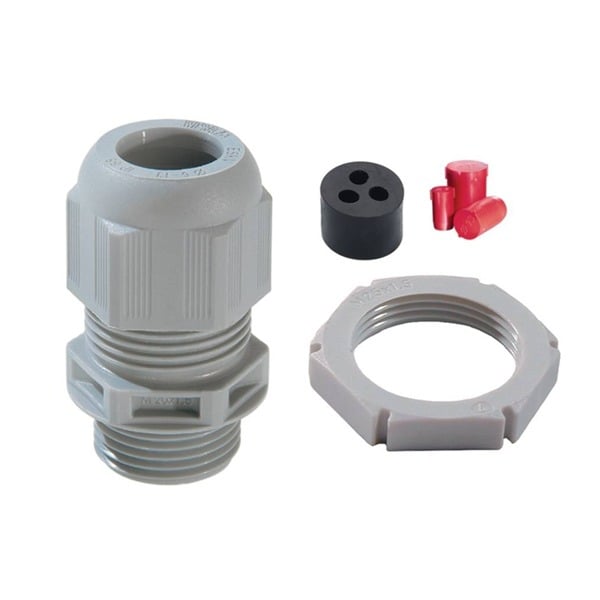

Wiska 3-Phase Tails Kit includes ESKV cable glands with multiple insert, locknut and blind plug. Cable gland is made of polyamide and EPDM sealing gasket. 750°C glow wire test. Available in light grey.

• TKE/P 50 type
• Suitable for 4 x 25mm/1 x 16mm tails/earth cables
• IP66 and IP68 protection class
• Light grey colour

Specification:

• Material cable gland: Polyamide
• Material sealing gasket: EPDM
• Temp. range min: -40 °C
• Temp. range max: 100 °C
• Protection class: IP66, IP68 (5 bar 30 min)
• Product Color: RAL 7035
• Thread type: M
• Ø Connection thread: D 50
• Lead: 1,5
• Length screw-in thread L: 14 mm
• Key width SW: 55 mm
• Total length TL: 59 mm – 72 mm
• Glow wire test: 750 °C
• Type of cable anchorage: A
• Install. torques fitting: 30 N/m
• Install. torques cap nut: 30 N/m
• Impact category: 5
• Order no. RAL 7035 10106246
• Type: Wiska TKE/P 50
• Packing unit: 1
• ETIM-Classification EC000441

IP 68 Plastic cable gland. ESKV 50/ MFD 4 x 25 tails and 110-16mm earth. Kit contains insert, locknut and blanking insert.
